Island Forms, Footers, & Guard Specs

Island Forms

Base, standard, bowtie, and barbell forms in carbon steel and 304/316 stainless. 9" and 13" heights, 6" radius or full radius ends. Side rails and ends available separately.

• Base Form Dimensional Drawing (3' x 4' x 13")
• Bowtie Form Dimensional Drawing (4' x 8')
• Barbell Form Dimensional Drawing (4' x 8')
• Bumper Side View Drawing
• Island Form Part Number Listing

Pump Boxes

Sized to Bennett, Gasboy, Gilbarco, Schlumberger, Tokheim, and Wayne dispensers. Carbon steel and stainless steel.

• Pump Box Dimensional Drawing
• Pump Box Part Number Listing by Dispenser

Curbing, Building Surround & Kiosk

Curbing available in 9" and 13" heights, carbon steel and stainless steel.

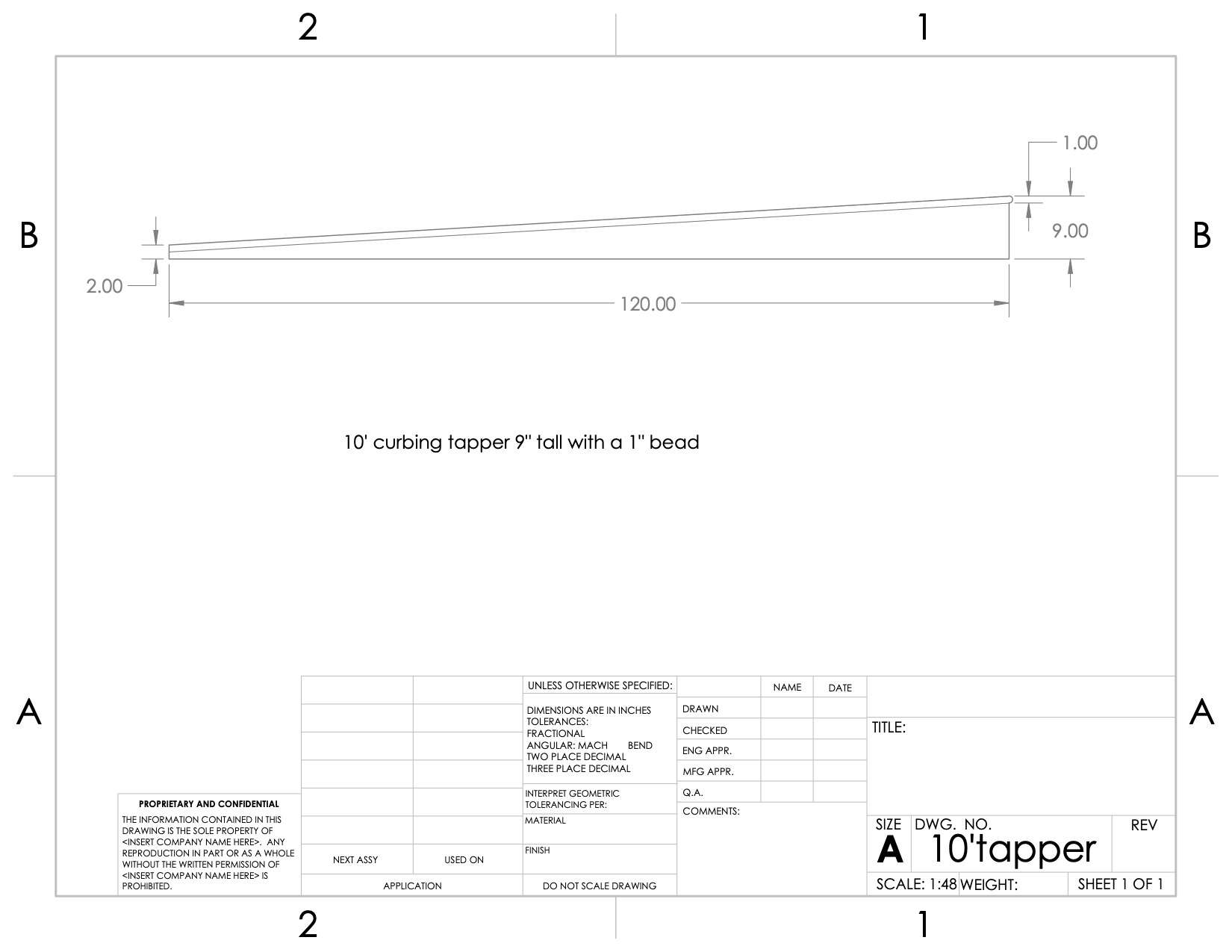

• Tapered Curb Drawing
• Building Surround Drawing (12 x 20)
• Curb Drawing (22 x 33)
• Curbing Overview

Pipe Guards

36", 40", and 48" wide U-shaped guards plus straight guards. 3.5", 4", and 6" OD in carbon steel and 304 stainless; 72" and 84" tall options. Morgan Brothers publishes no dimensional drawing for pipe guards — request one from the factory with a quote.

• Pipe Guard Part Number Listing

Footer Boxes

Footer boxes are built to the canopy manufacturer's specification. Supply the canopy footer detail drawing with a quote request.

• Footer Boxes Overview

EMV Charging Protection

• EMV Charging Protection Overview
• EV Charging Protection Detail
